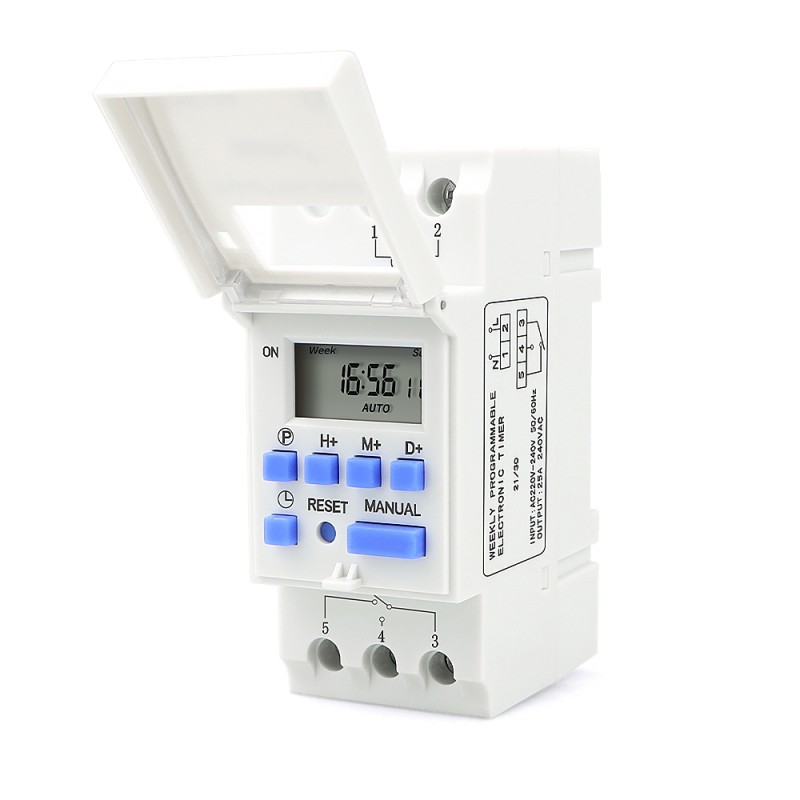

DIN-Rail Digital Timer Switch

DIN-Rail Digital Timer Switch – 25A, Weekly/Daily Programs (THC15A type)

Set and forget automated ON/OFF control for lights, pumps, signage, fans, and inverter loads. Mounts neatly on a DIN rail with a flip cover and clear LCD.

Key features

• Up to 16 ON/OFF programs (daily or weekly cycles)
• 25A high-power relay (240 VAC max load)
• Backup memory keeps time/programs during power loss (years)
• Manual override, countdown, and holiday pause
• Simple 4-button setup: Hour, Minute, Day, Program
• Compact size: ~86.5 × 36 × 65.5 mm

Electrical

• Supply: AC 220–240 V, 50/60 Hz
• Output: 1-channel relay, 25 A @ 240 VAC
• Terminals marked for easy wiring

In the box

• Timer switch, quick guide.

Note

Install after a suitable MCB/RCD by a qualified electrician. Suitable for single-phase systems.
