Dsp pure sine wave inverter files( with detailed videos and write-up) with source file

DSPIC30f2010 Pure Sine Inverter Circuit with Charger - The DSP30f2010 Inverter Version 4.0

Presenting a remarkably dependable pure sine wave inverter circuit crafted using the digital signal processing IC (DSP30f2010) from Microchip.

click here to watch our videos on how to design dsp your inverter at home (DIY)

downloadable files

1. dsp inverter control board source file

2. mosfet board source file

3. lcd board source file

4. dsp inverter control board file

5. mosfet board file

6. lcd board file

7. dsp inverter circuit layouts

8. dsp inverter hex file

9. how to calibrate your dsp ic

10. how to design pickit2 development board

11.how to change the company name on your dsp inverter(put your own company name)

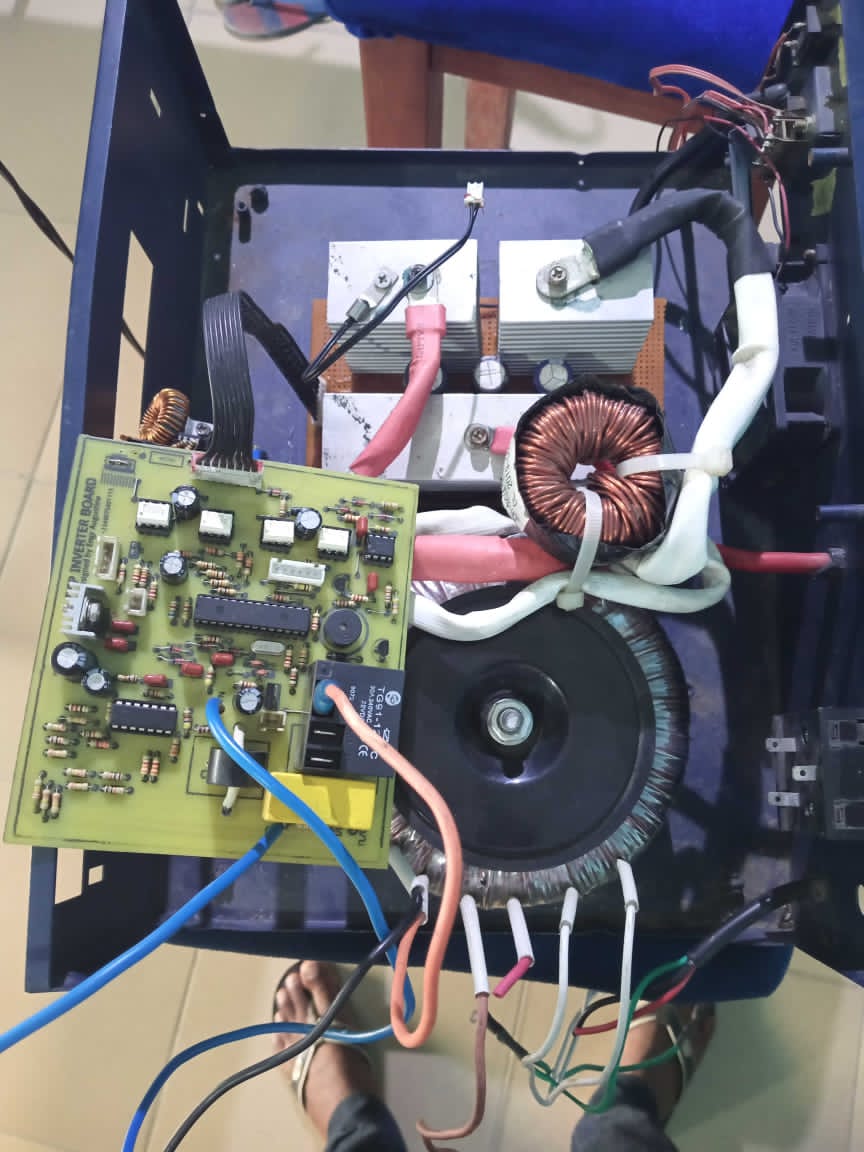

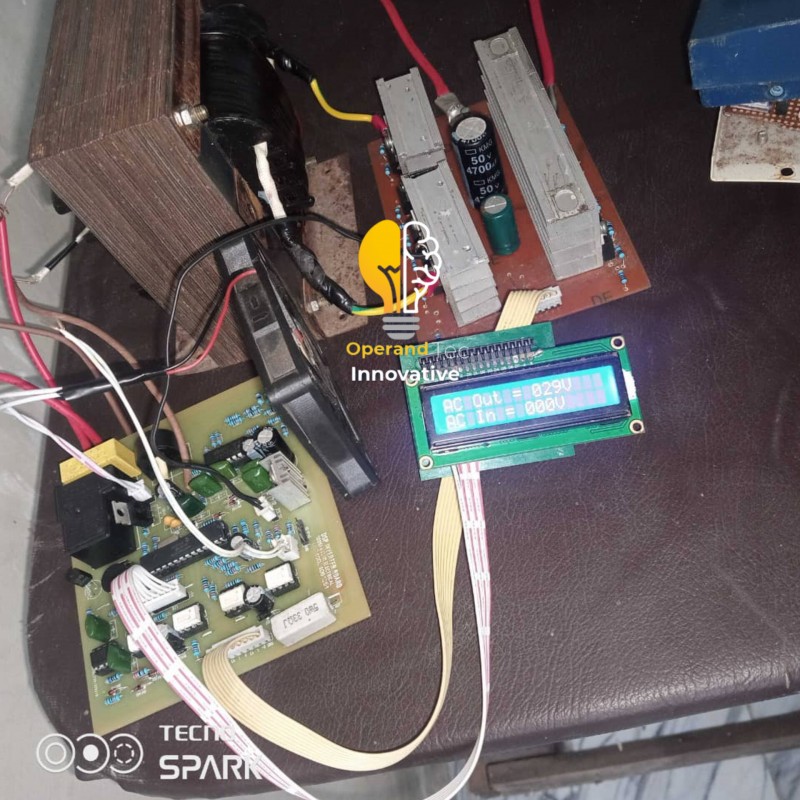

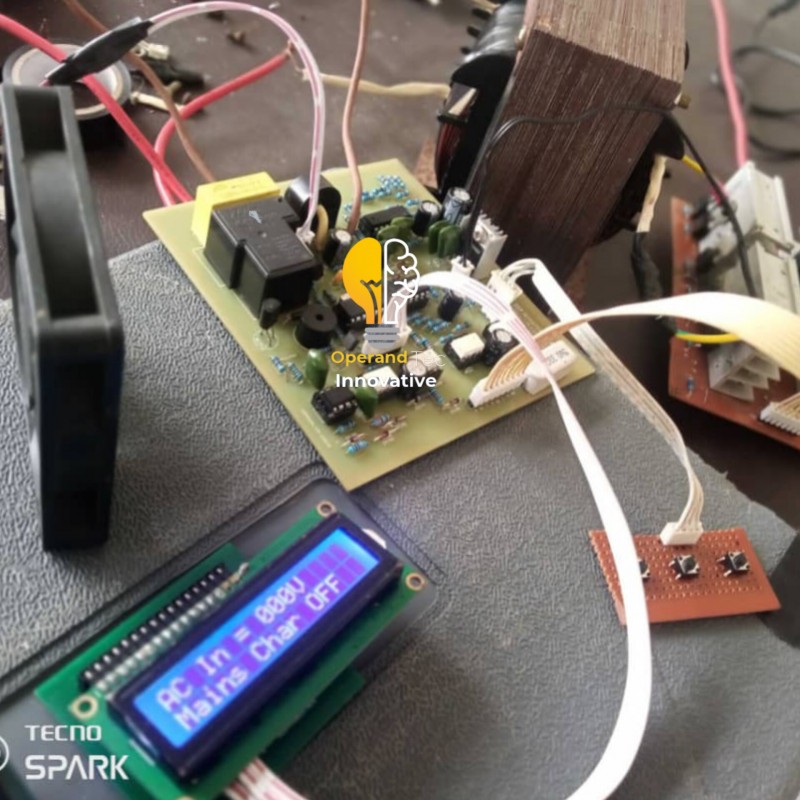

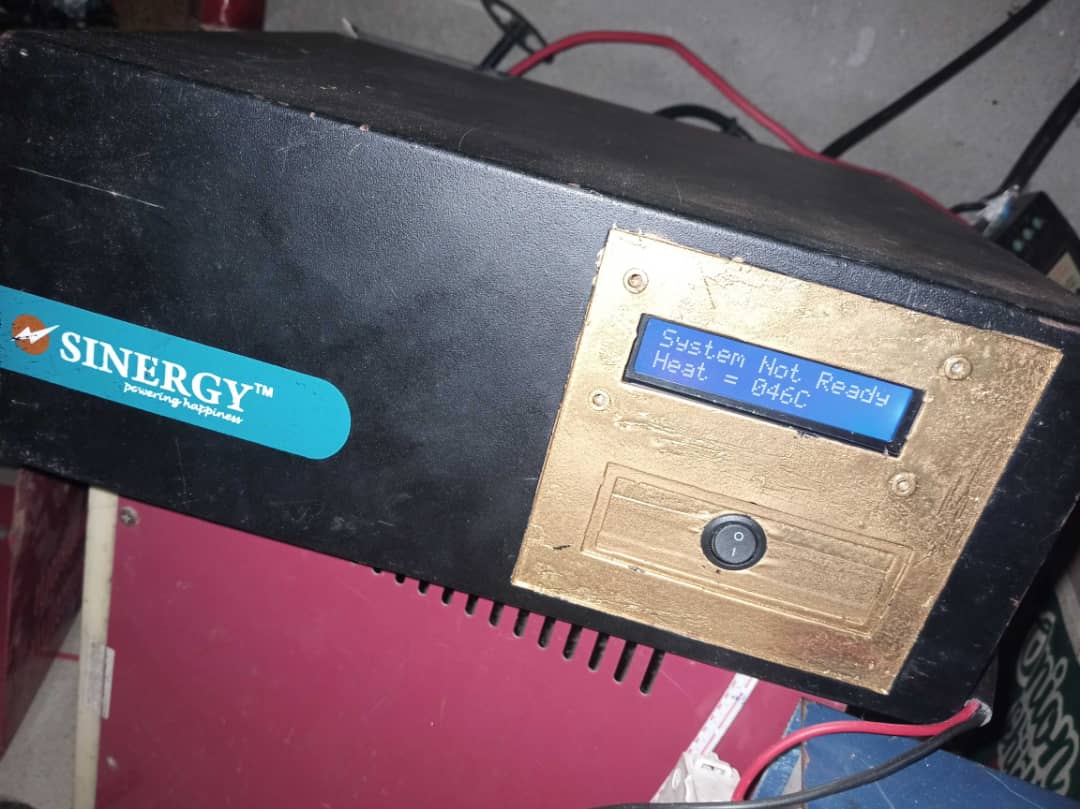

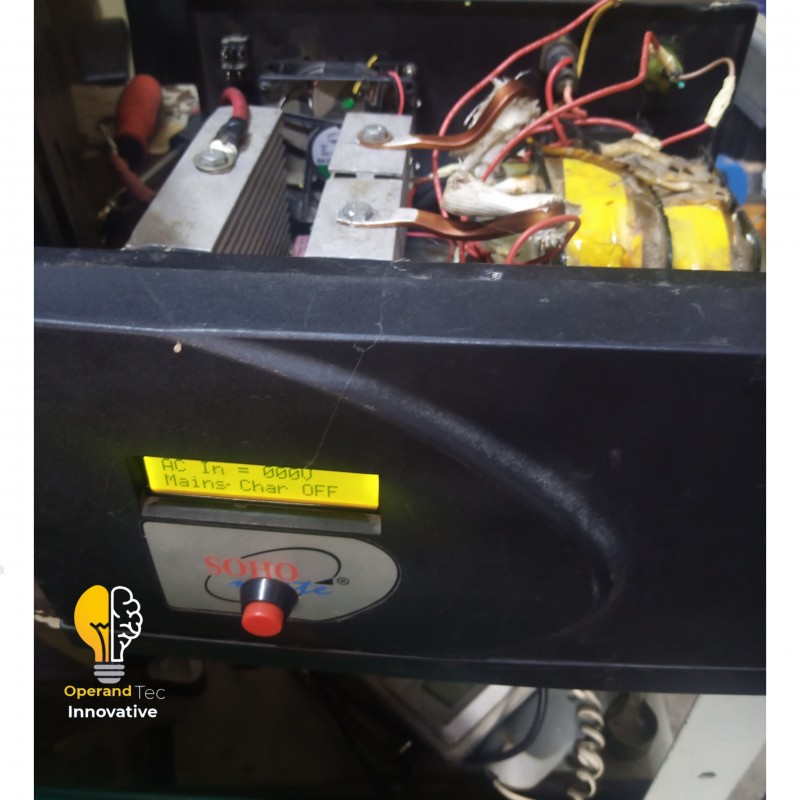

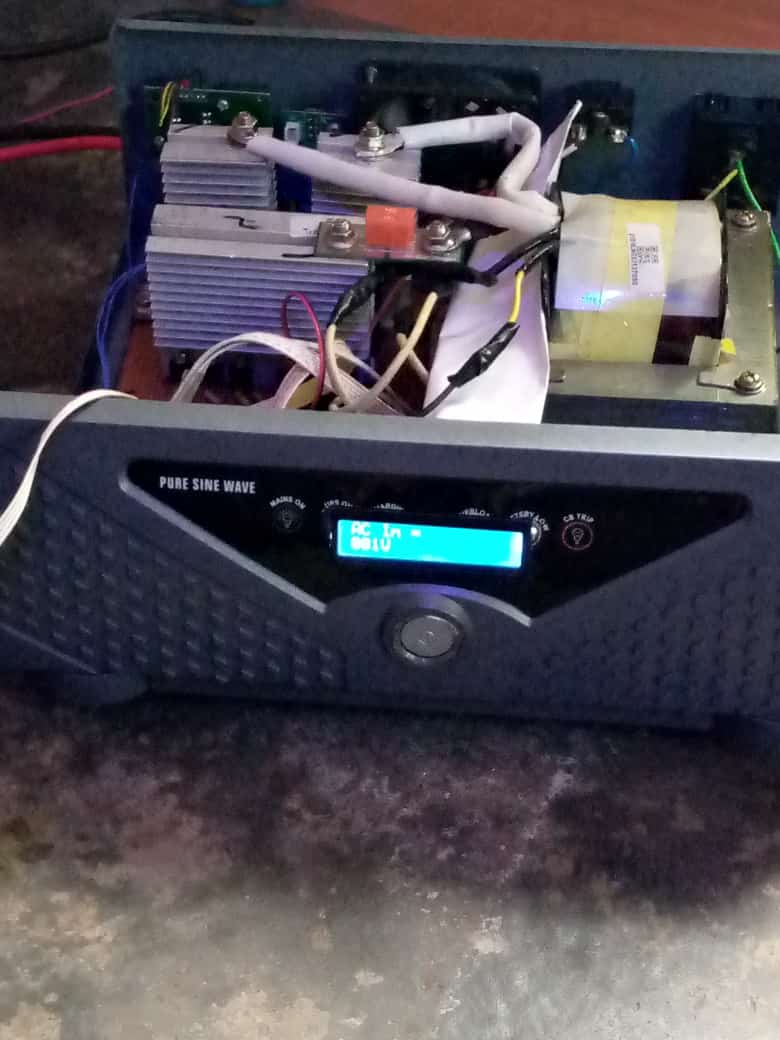

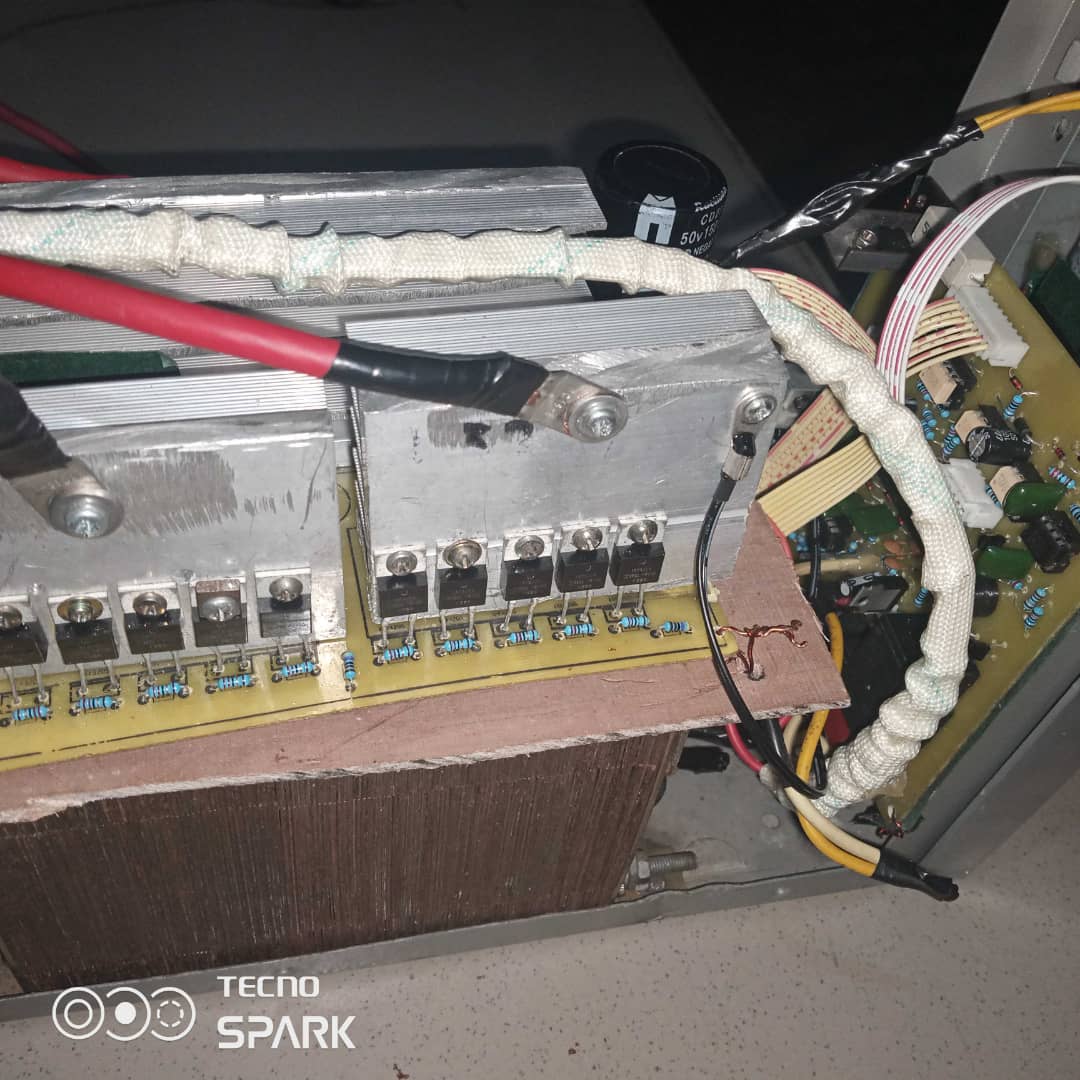

Check out some inverters designed with this dsp board

**Key Features of the DSP30f2010 Inverter Version 4.0:**

1. **Battery Charging Capability**: This inverter card can charge various inverter/solar batteries with selectable charging currents.

2. **Custom Inverter Design**: Utilize it to create a new pure sine inverter system bearing your branding. It can also serve as a replacement for malfunctioning transformer-type inverters such as Afri-Power, Contec, Luminous, Sukam, Nexus, Eastman, and more.

3. **Enhanced Reliability**: After extensive testing, the system has demonstrated a remarkable 99% reliability rate.

4. **Versatile Compatibility**: It functions as both an inverter and a UPS.

5. **Protection Features**: Offers comprehensive protection features, including Mosfet protection interruption, improved battery charging algorithms, low and high voltage protection, and overload, overcharging, over battery, and over-temperature protection.

6. **Multi-Voltage Support**: Compatible with various input voltages, including 12V, 24V, 48V, 96V, and 120V.

7. **Load Display**: Provides a wattage load display.

8. **Monitoring and Alerts**: Detects and raises alarms for cooling fan and NTC sensor failures.

9. **Customization**: Allows users to set their own maximum load, charging current, and various other parameters to suit their preferences.

10. **Battery Management**: Includes low battery alarm and low battery cut-off.

11. **Control Board Replacement**: Can replace control boards in single-phase low-frequency pure sine wave inverters from various brands.

12. **High Current Charger**: The control board is versatile and can be used to build high-current, four-stage chargers with adjustable current ratings from 1A to 100A.

13. **LCD Compatibility**: Supports either 16x2 or 16x4 LCD displays.

14. works for all kinds of low frequency inverters: The board can be used for control board replacement for all single phase low frequency pure sine wave inverters (MUST, POWER STAR, FELICITY, KAMA POWER, POWER JACK etc. )

Upgrade to the DSPIC30f2010 Inverter Version 4.0 for a reliable, feature-rich solution for your inverter and charging needs.

for more info call or WhatsApp:+2348051509166
